HEXYLON
Hexylon is a high-performance portable meter intended for professional users who need advanced features and high measurement accuracy. And now Hexylon is ready for NextGen TV!
With Hexylon network operators, broadcasters and broadcast technicians have a tool to measure, analyse and diagnose radio and TV signals in any scenario, no matter how complex. All in the most automatic and intuitive way in the market.
Hexylon establishes a new concept of usability in measurement instrumentation, where the content becomes the interface, and everything flows intuitively through naturalness in the gestural commands. Elements react to user actions the way he expected, making such a complete tool has never been used before in such a simple way.
Its ultra-fast spectrum analyser, together with its high resolution and proprietary features such as the new PDP v2 (Path Delay Profile) for echoes analysis, allows to visualize any important aspect of the signal that can be hidden. With new concepts such as “1 click scalability” (possibility of incorporating new features through the Internet) and "always ON life battery" (separately replaceable and rechargeable battery). With Hexylon investment is guaranteed.
Hexylon incorporates a remote user repository in the cloud where you can get free updates, measures downloads, new channel plans, etc. so that the operator may have available for free its fleet of equipment and installers.
BENEFITS
FEATURES
- Analogue.
- DVB-T, DVB-T2 v1.3.1, DVB-T2 lite, DVB-H.
- DVB-T2-MI (Gateway to Modulator).
- ISDB-T/Tb, DVB-S, DVB-S2, DVB-S2 multistream, DSS.
- DVB-C, QAM Annex A, B, C.
- ATSC 3.0 *
- ATSC 1.0 *
- DVB-C, DVB-H, analogue (PAL, NTSC, SECAM).
- FM, DAB, DAB+.
* Option ATSC REF: 901622.

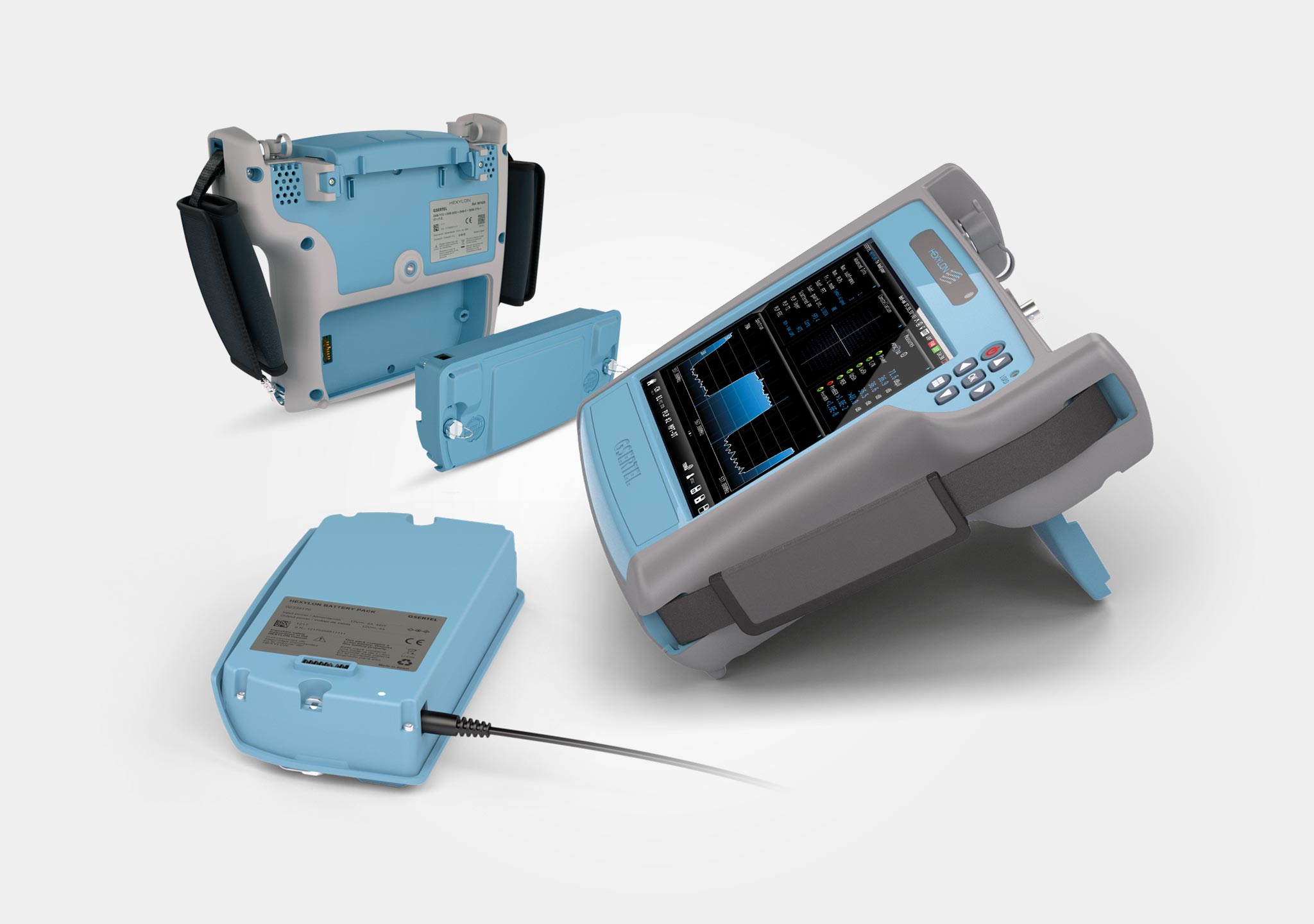

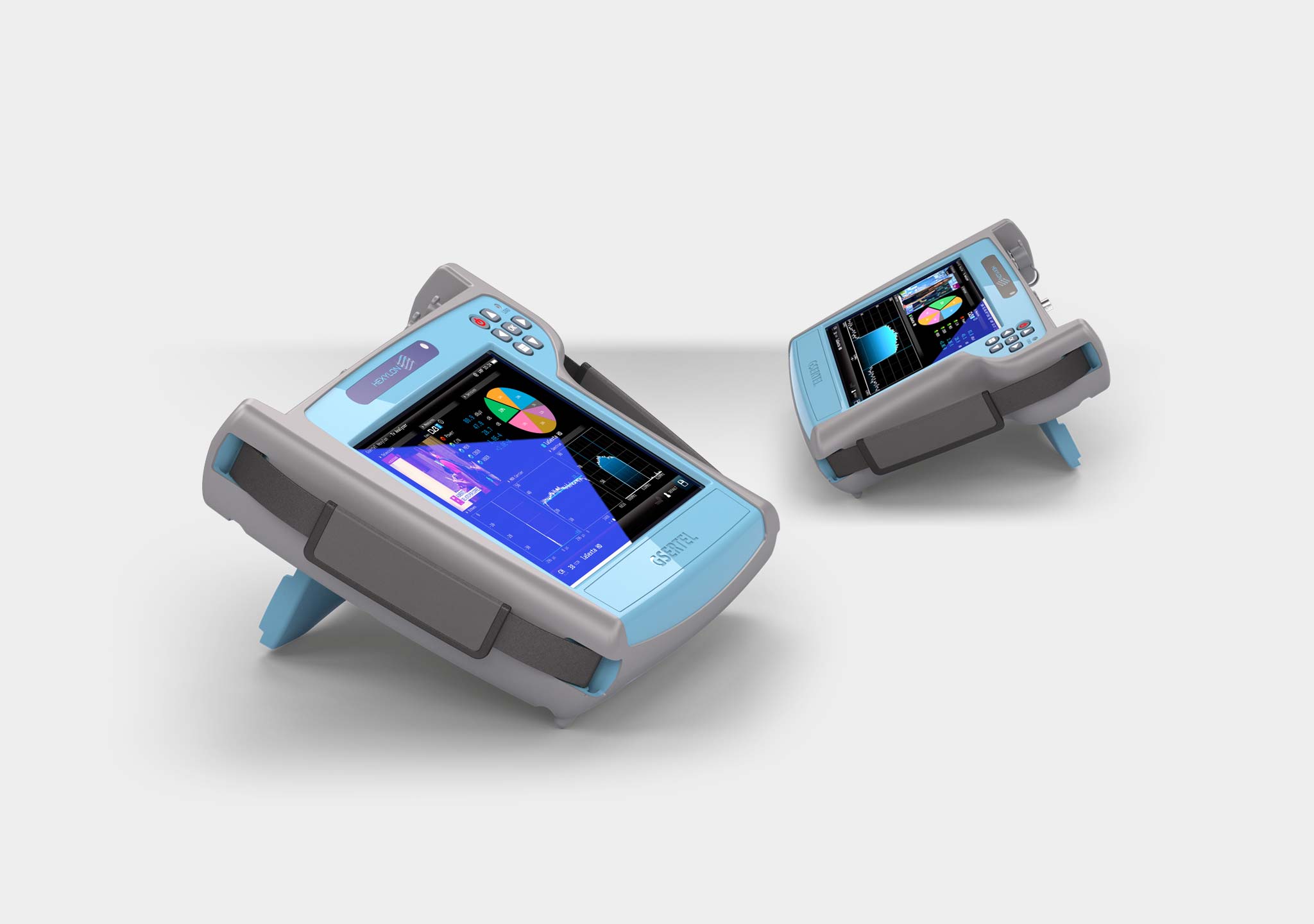

- Ergonomic design on strong and compact enclosure.
- Multitouch navigation on high resolution 8” screen, contrast and brightness, optimized for outdoor viewing.
- Multiple desktop with simultaneous work environment.
- Mosaic exclusive feature with 6 widgets customizable by user.
- Ultra-fast scan of the entire band with automatic present channels identification and measurement.
- Ultra-fast spectrum analyser (scanning< 10ms).
- PDP v2Path Delay Profile (Impulse Response without demodulation. Analysis of echoes outside the guard interval).
- MER/Carrier graphical representation.

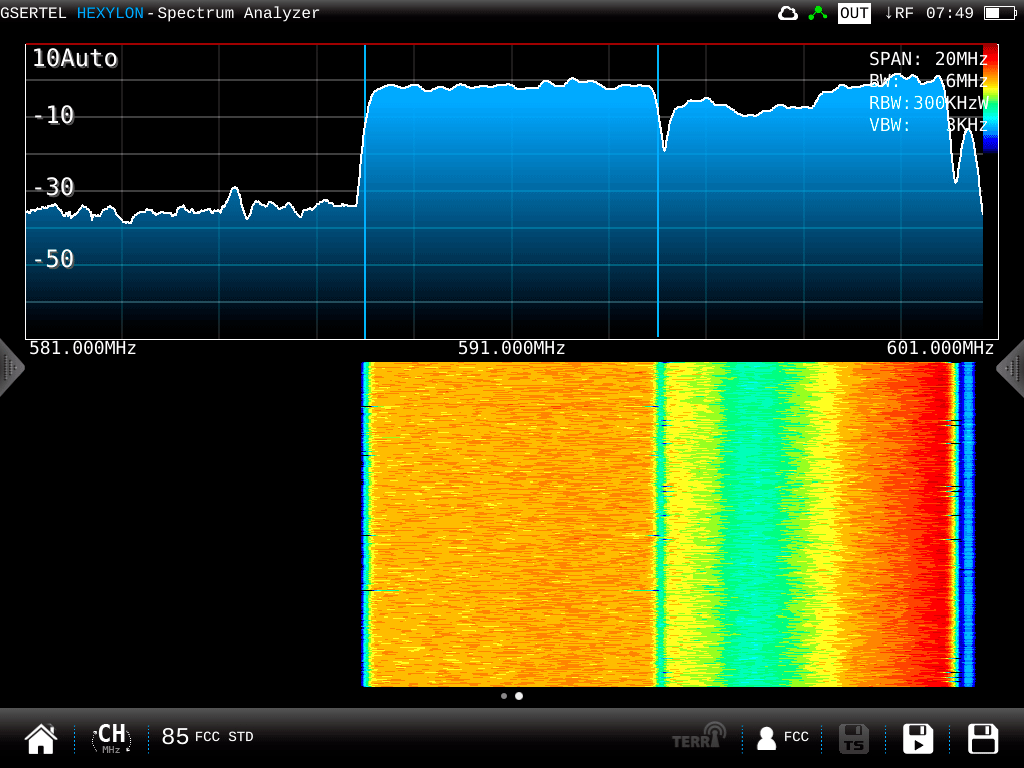

- Waterfall: graphical presentation of signal evolution in time and frequency.
- T2-MI over ASI or IP over packets analysis.
- Specific measures over IP (TSoIP): bitrate UDP/RTP, bitrate payload IP, packet arrival intervals, lost IP packets, corrected IP packets, FEC parameters, etc.
- Transport Stream real-time analysis with presentation of all services and tables.
- “Cloud” integrated management environment: channel plans, measurement, tracking, reporting, captures, TS files, etc.
- Automatic firmware update.
- API for integration with NMS or probes for monitoring (header or transmission).

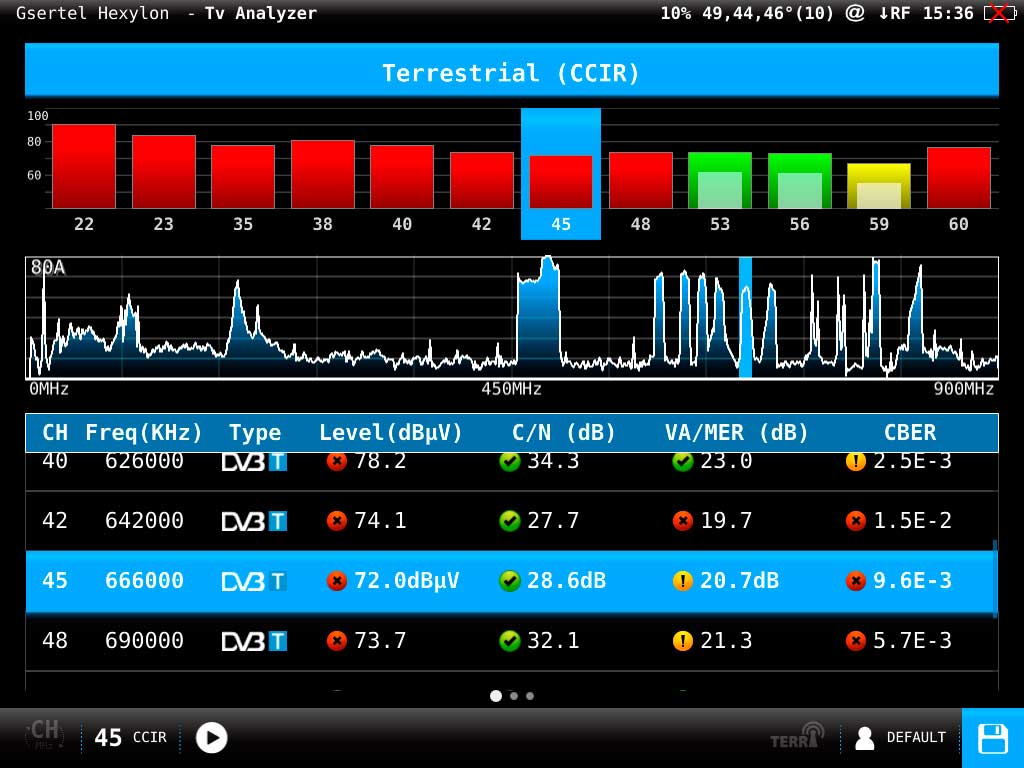

Scanning, identification and automatic measurement of all channels in the frequency band.

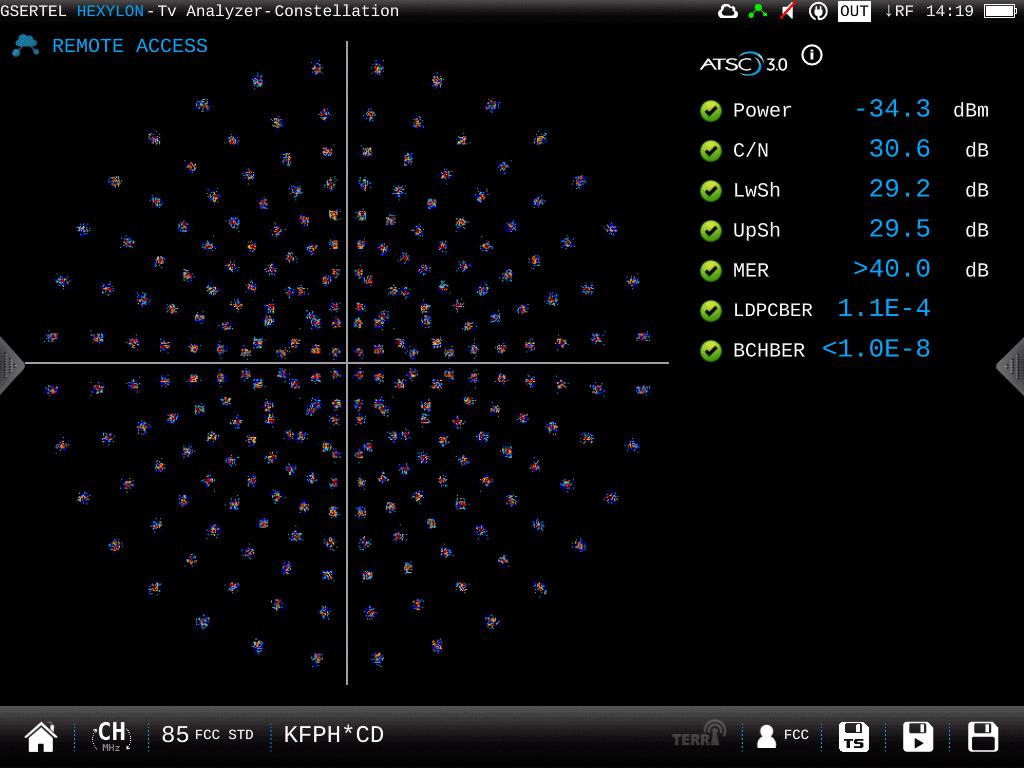

Thanks to the constellation diagram, you can detect the presence of noise, phase jitter, interference, and gain compression, all of which impact overall signal quality and thus reduce Modulation Error Ratio (MER).
Thanks to the constellation diagram, you can detect the presence of noise, phase jitter, interference, and gain compression, all of which impact overall signal quality and thus reduce Modulation Error Ratio (MER).

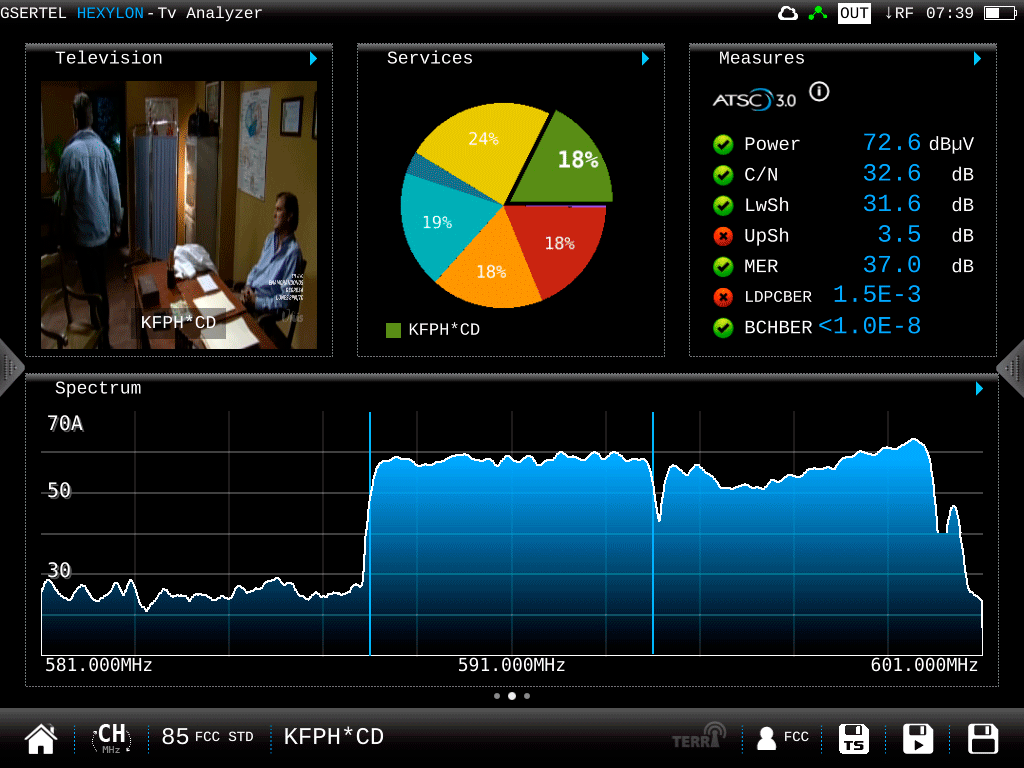

Video, transport analysis, measurements and spectral representation of the channel in real time on a single screen.

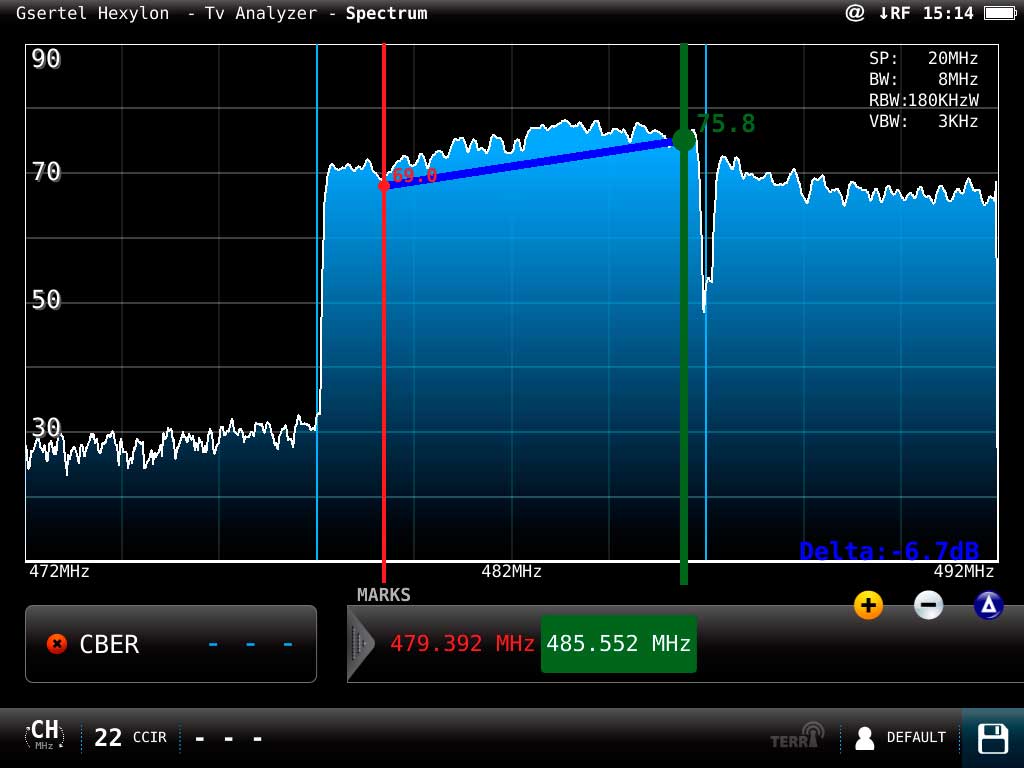

Fast, accurate and intuitive spectrum analyzer with multiple measurement and capture facilities.
