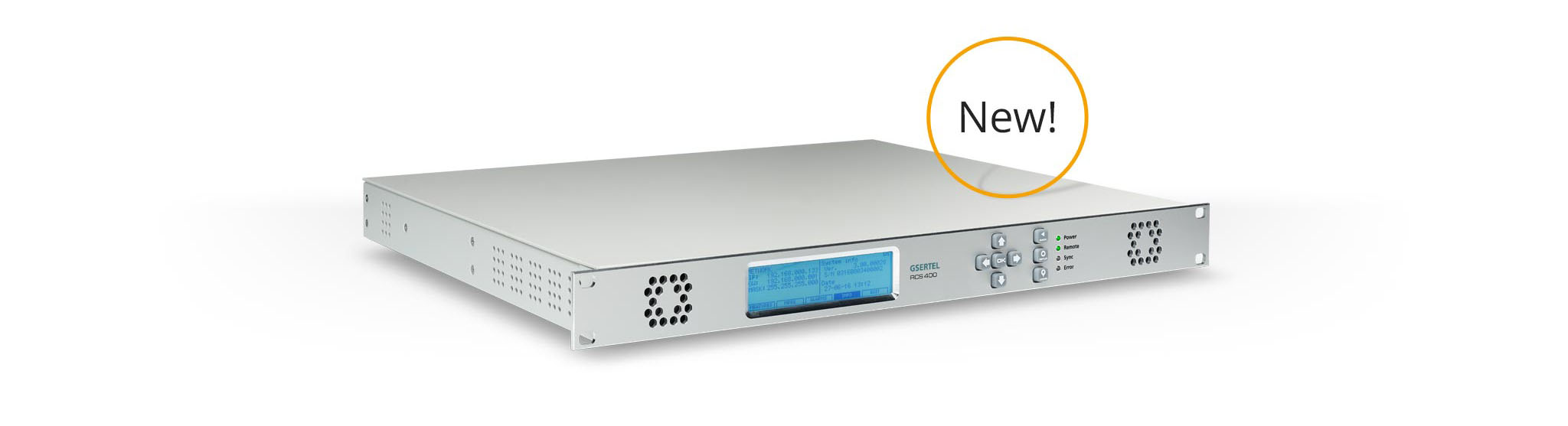

RCS 400 DVB-S/S2


Gsertel’s RCS 400 DVB-S/S2 is a network professional monitoring platform that allows the remote, proactive, simultaneous and real-time of up to 4 DVB-S/S2 digital television multiplex, both at RF and transport levels.​

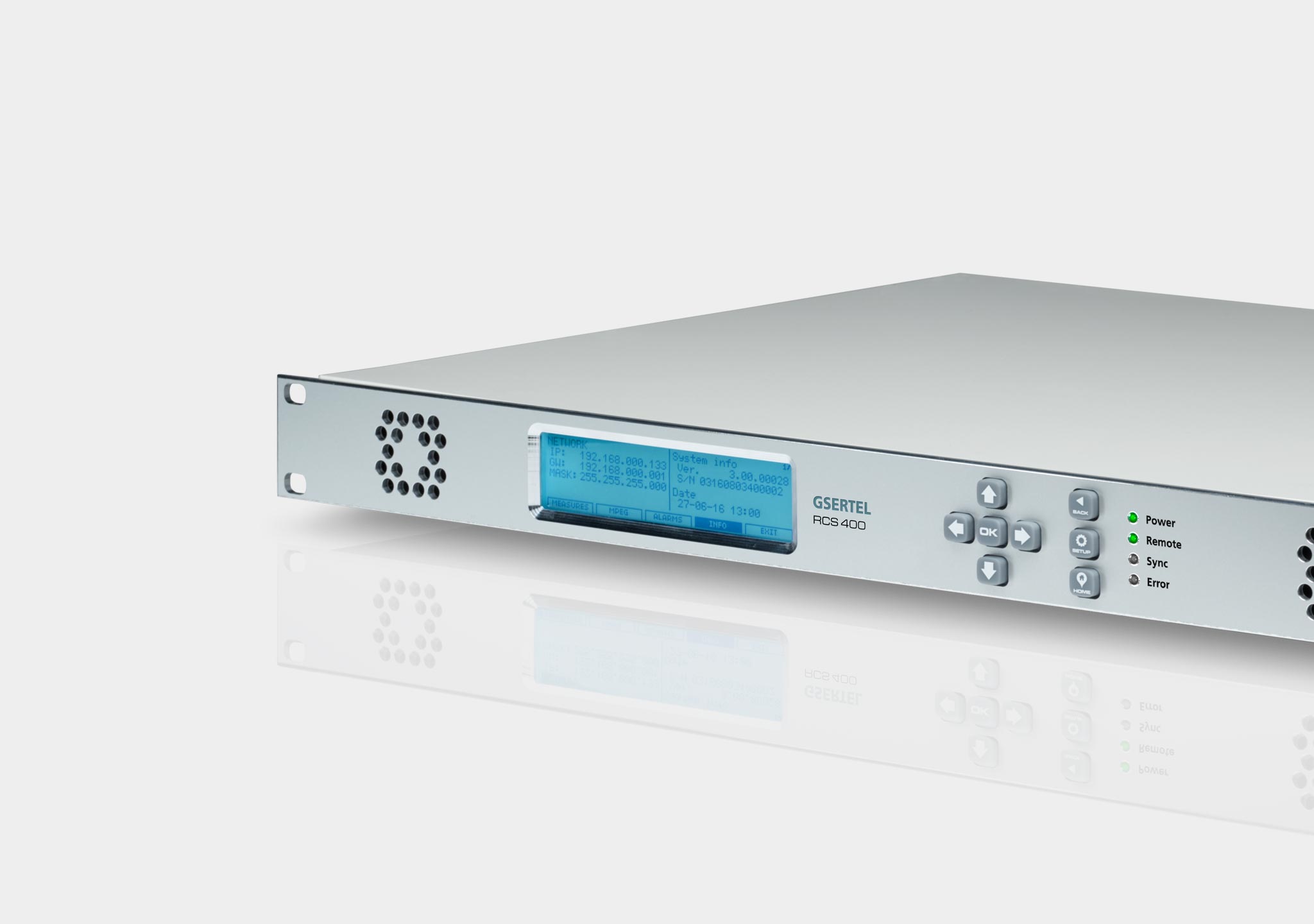

With a compact format, 1RU, all the processing and analysis necessary to obtain the monitoring results is done on the equipment, not needing any additional element except a standard web browser to display the information.

Gsertel’s RCS 400 DVB-S/S2 is a network professional monitoring platform that allows the remote, proactive, simultaneous and real-time of up to 4 DVB-S/S2 digital television multiplex, both at RF and transport levels.​

With a compact format, 1RU, all the processing and analysis necessary to obtain the monitoring results is done on the equipment, not needing any additional element except a standard web browser to display the information.

please use Firefox Browser for better experience
Our Online Demos are available to help you explore how our products and technologies can support your business and technical needs.

FEATURES

Connectivity
  • Signal inputs: 4 x RF N50 Ω, 4 x ASI BNC 75 Ω, 1 x IP GE RFJ45 (up to 4 TS), 1 x (Backup) GE RJ45.
  • Signal outputs: 2 x ASI BNC 75 Ω.
  • Ethernet (FE) port for management.
  • HDMI output.
  • USB port.

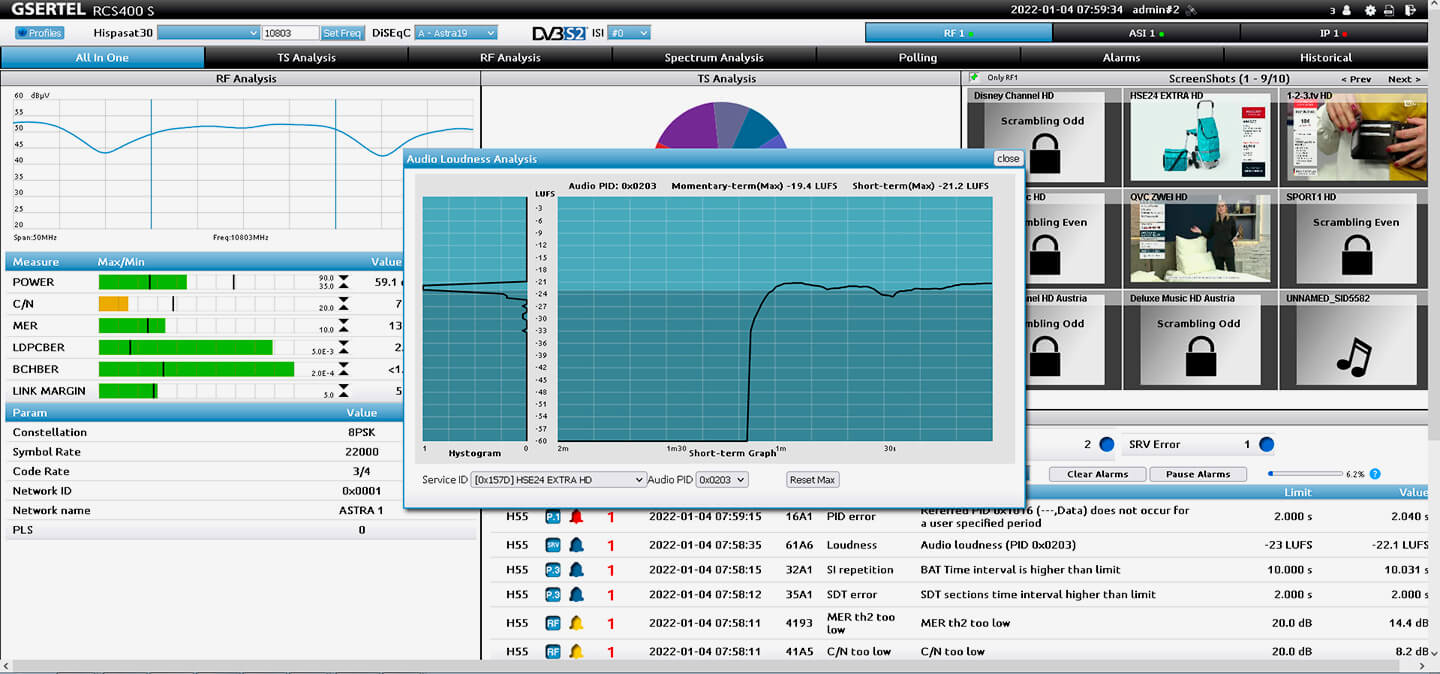

All the channel analysis and measurement information summarized at a glance. Includes the Loudness graph of the selected service, according to EBU Tech Doc 3341.

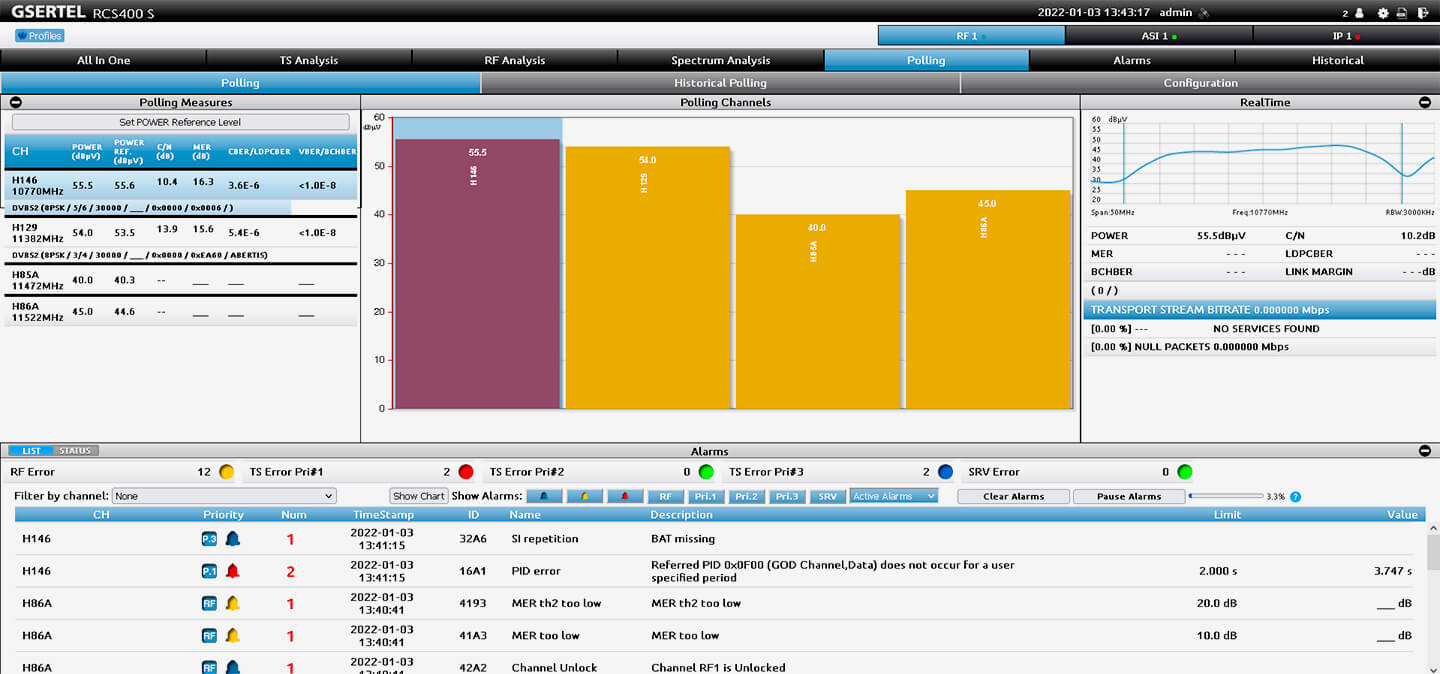

Automatic measurement of multiple channels over an input.

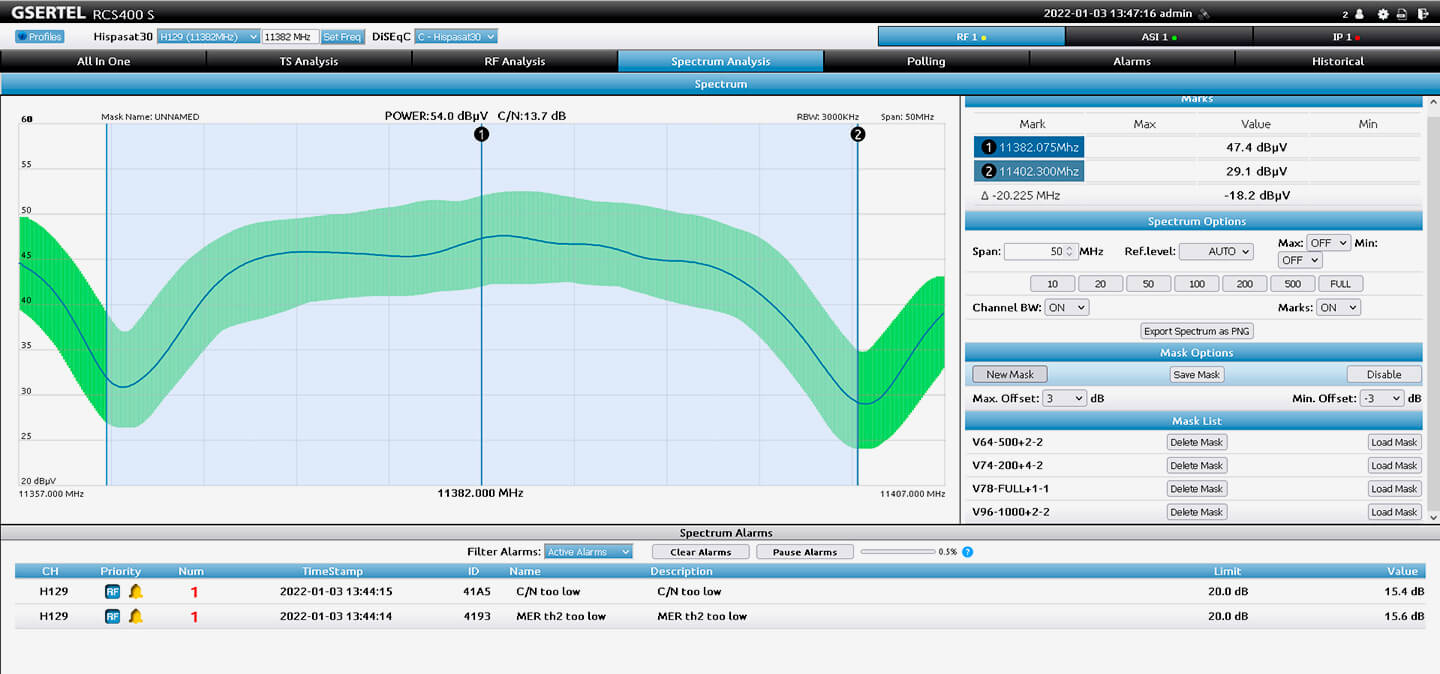

Spectrum analyzer from 250 MHz to 2.4 GHz with mask function and automatic alarm.

ADVANCED FEATURES

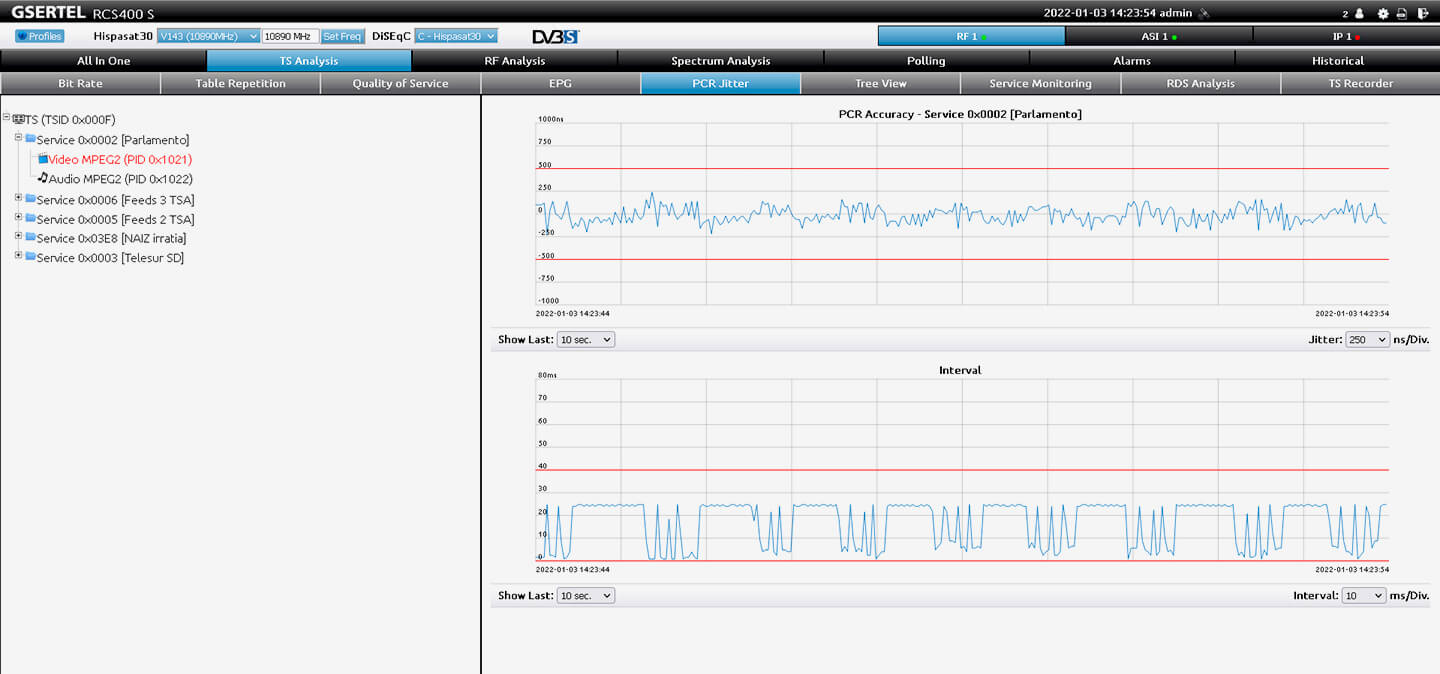

Shows two graphs that represent the PCR jitter and the PCR interval of a selected MPEG Video.

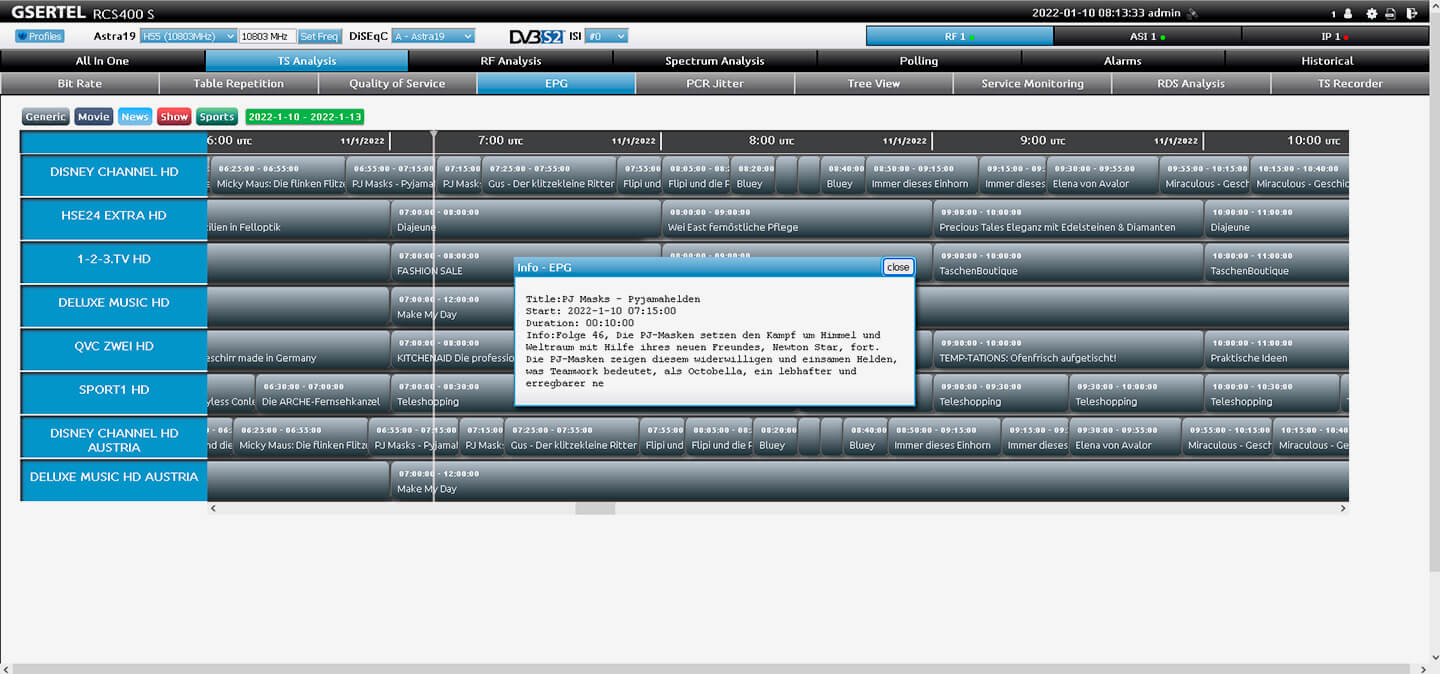

Shows the electronic program guide of the channel, including the complete information of all the events.

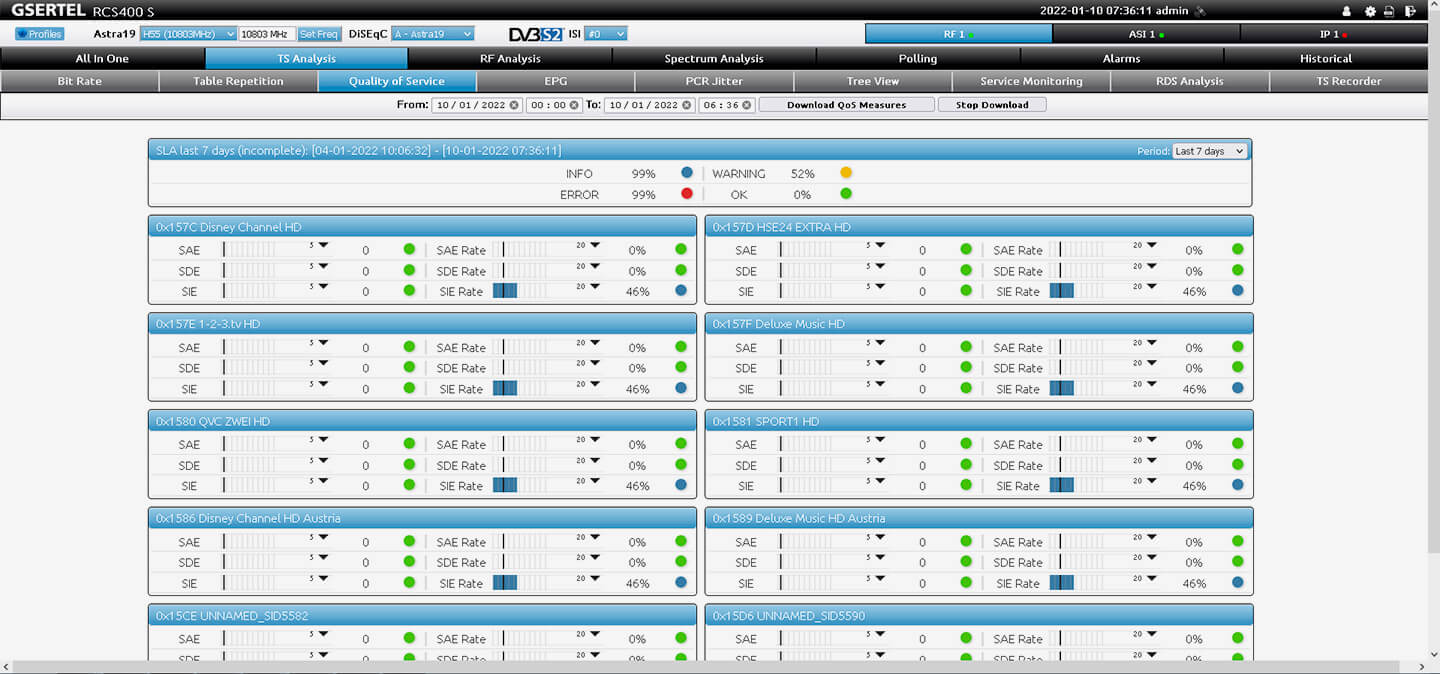

Shows, graphically, all the measurements relating to the quality of the selected service: SAE, SDE, SIE. In addition, three rates corresponding to each measurement will be shown: Service Availability Error Ratio, Service Degradation Error Ratio, Service Impairments Error Ratio.
Advanced features
  • Simultaneous and real-time processing of all inputs (500 Mbps maximum).
  • “All in One” screen that allows analyzing at a glance the status of a channel from several points of view: radiofrequency, transport and alarms.
  • Wideband supported.
  • Supports DiSEqC commands to manage up to 4 satellites (per RF input configurable)
  • Spectrum analyser with mask function and automatic alarm.
  • LNB powering supported (per RF input configurable)
  • Measurement and temporal representation of the PCR Jitter and PCR interval.
  • Powerful historical analysis of measurement and analysis of alarms.
  • TS recording: manual, triggered by alarms, and by schedule.
  • Remote control application in HTML5.
  • Full management through SNMP v2c.
  • Electronic Program Guide.
  • Loudness metering according EBU Tech Doc 3341.
  • Black and Freeze Detection.
  • Audio Silence Detection.
  • QoS measures and alarms.
  • Conditional Access Module (CAM) support.
  • PLS support (DVB-S2)
  • ISI support (DVB-S2)

BENEFITS

  • Proactive detection of signal problems.
  • Time reduction in distribution and transmission network diagnostic and troubleshooting.
  • Attractive cost-benefit solution for the signal in-depth analysis.
  • Very intuitive and user friendly interface.
  • Flexible and scalable in functionality architecture (software licenses).
  • High accuracy in measurement.
  • Full integration with third parties’ NMS.
